![Nitrogen Atmosphere Convection Vacuum Reflow Oven SVR-1040GT-PC](img/img_svr-1040gt_visual.png)
Switching between vacuum and reflow modes to enable various production forms
- Can also be used as a normal reflow oven by switching modes
- The heating method of the vacuum zone is renovated to support large workpieces
- Evolved transfer type that can reproduce various temperature profiles
- Vacuum control mechanism enables scattering control and void-free performance
Furnace configuration

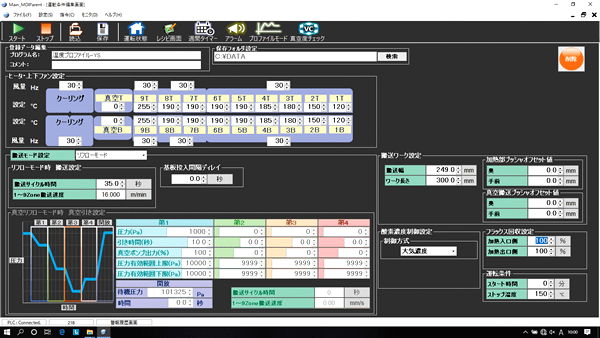

The operation screen that allows easy mode switching and vacuum settings

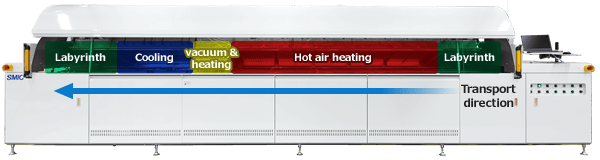

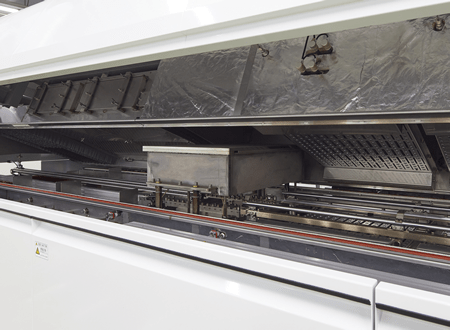

Vacuum & heating zone that enable various production forms
Notebook PC display panel
3D display for easy operation
![](img/img_snr-gt_equipment_01.png)
Safety light curtain
Improved maintenance safety
![](img/img_snr-gt_option_07.png)
UPS power supply
Safe stop in the event of a power outage
![](img/img_snr-gt_option_05.png)
Other equipment
- PLC + PC control
- Heated zone flux management system
- PCB fall detection
- PCB counter
- Oxygen analyzer
- Automatic oxygen concentration control
- Independent fan control (tripartition)
- Profile measurement mode
- Weekly timer
- Conveyor special surface treatment(chain, key materials and sprockets)
- Signal tower
- Automatic conveyor width adjustment
- Chiller unit
Automatic changeover by bar code [optional]
Functions that enable changeover without errors
Other equipment
![](img/img_svr-1040gt_option_01.png)

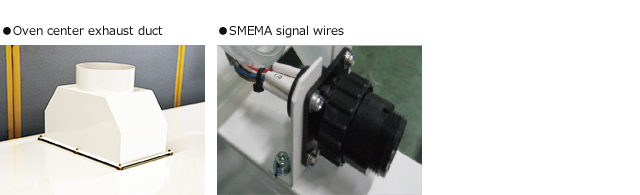

- Up/down mechanism of top-bottom labyrinth curtains
- All block fan control
- Operator/engineer mode
- Display in English, or Chinese
SVR-1040GT-PC | ||
---|---|---|
Dimensions (L×W×H) | 6,900 × 1,760 × 1,475 mm | |
Conveyor height | 900 ±20mm | |
Transfer form | pin chain & pusher | |
PCB dimensions | W:100 - 400, L:120 - 400, T:1.0 - 3.0 mm | |
Component height | ≦10mm [OP:50mm], ≧15mm [OP:25mm] | |
Heating zone | 9 | |
Vacuum zones | 1 | |
Cooling zone | 2 | |
Side edge clearance | 5mm | |
N2 (Nitrogen) gas supply | Main | ≧99.999%, ≧0.4MPaG, max. 600NL/min |
Vacuum break | ≧99.999%, ≧0.4MPaG, max. 1,000NL/min(Vacuum breaking time:8sec) | |
N2 (Nitrogen) gas usage | Component height/STD:≦10mm, ≧15mm | 600NL/min |
Power requirement | 200V, max52KW, 135A, 3-phase |
