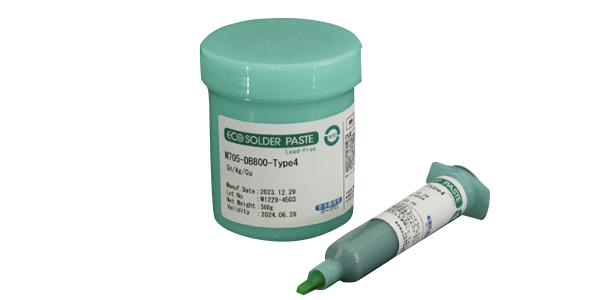

DB800 Series

DB800

Compatible with the widely used water-based cleaners

Features

  • Excellent cleanability with water-based cleaner
  • Reduce voids effectively
  • Paste available for printing and dispensing

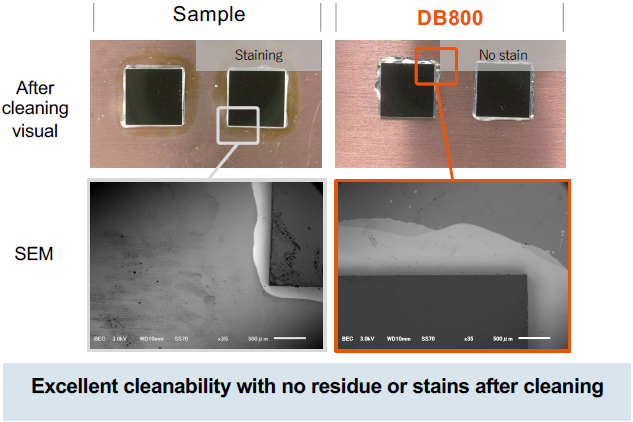

Superior cleanability

Cleanability Test

Cleaner: Water-based
Concentration: 30wt% aq.
Liquid temp: 50℃
Cleaning method: US (480W, 38kHz)
Time: 10min
Rinse: DI water
Rinse method: US (480W, 38kHz)
Time: 3min× twice
Dry: Air blow & 50℃×5min

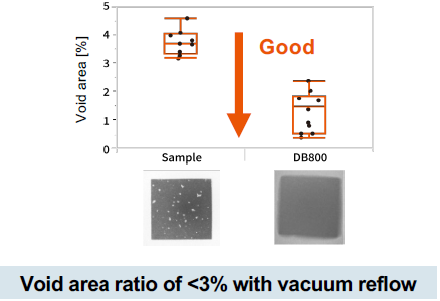

Void reduction effect

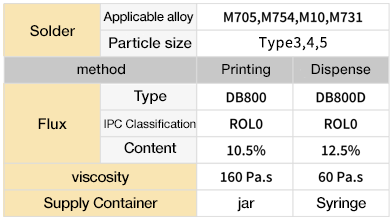

Product lineup
